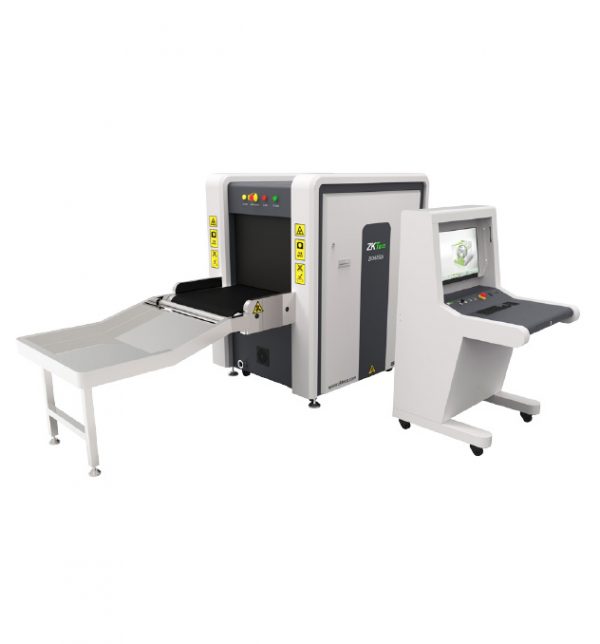

ZKX 6550A
Single Energy X-ray Inspection System
ZKX6550A is a single energy X-ray screening system that provides a highly economical visual inspection solution for carry-on luggage. ZKX6550A uses reliable high quality X-ray generator. With the superb image algorithm, ZKX6550A could offer clear scanning image, which allows operators to identify potential threat items visually. ZKX6550A has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password. With ergonomic modern design, ZKX6550A could help operators to identify suspicious items fast and accurately.
Description
Specification
Tunnel Size (W*H) 655*505 (mm)
Speed 0.20 m/s
Height of Transmission Belt 700 mm
Maximum Load ≤180 kg (Adequate distribution)
Wire Resolution 38AWG
Space Definition Horizontal Φ1.0mm \ Vertical Φ2.0mm
Penetrate Definition 34 AWG
Penetration 10mm steel board
Monitor 21.5 inch LED
System Function (High density alert, Explosive/ Drug auxiliary detect, TIP, Luggage counter, date/time display, User management, Training).
Film Safety ASA/ISO1600 standard of film safety
